Maximize Output with Multi-Spindle Efficiency! The Ultimate High-Speed CNC Routing Solution for Display Panels, PCBs, and Advanced Composites.
Precision Panel Routing CNC: Technology & Application Snapshot
- Core Technology: High-speed multi-spindle architecture powered by robust Mitsubishi controllers.
- Primary Advantage: Exponentially multiplies mass-production throughput while maintaining strict edge-finishing tolerances.
- Key Applications: Touch panels, LCD frames, PCB routing, aluminum composite panels, and engineering plastics.
- Process Focus: High-speed contouring, drilling, and routing for thin, large-format, or stacked sheet materials.
The SFY Precision CNC Panel Routing Machine series is engineered to conquer the high-volume demands of the electronics and composite material industries. Comprising the ultra-fast TCE series and the highly productive AEM multi-spindle series, these machines transform how flat panels are processed. By allowing multiple workpieces to be routed simultaneously, this series drastically reduces cycle times, making it the most profitable asset for dedicated panel manufacturing facilities.
Core Advantages: Scaling Your Production Capabilities
Designed specifically for sheet material processing, these machines integrate intelligent configurations to meet various production scales:
Multi-Spindle Productivity Multiplier

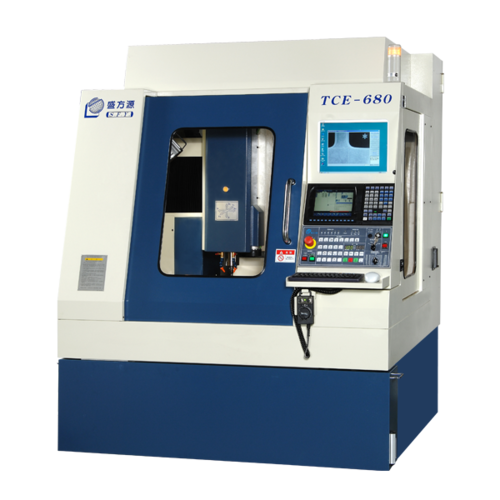

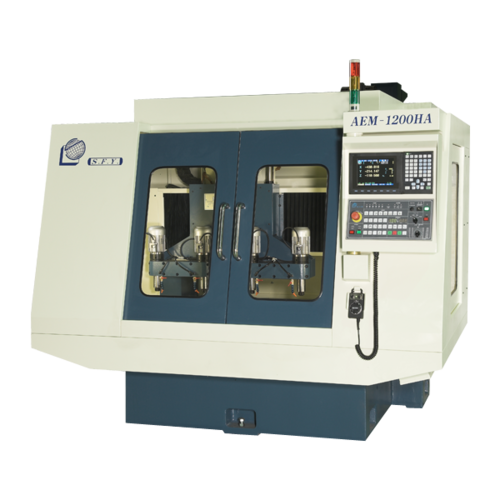

Dramatically increase your yield. Our lineup ranges from the dual-spindle TCE-680(2) to the highly efficient AEM-1200HA featuring up to 6 simultaneous spindles, allowing you to produce multiple identical parts in a single machining cycle.
High-Speed Spindle Performance
Engineered for flawless, burr-free edge finishes. The TCE series boasts 40,000 RPM spindles, while the heavy-duty AEM series delivers reliable 30,000 RPM cutting power, ensuring optimal feed rates across different materials.
Flexible Configurations (ATC & Travel)

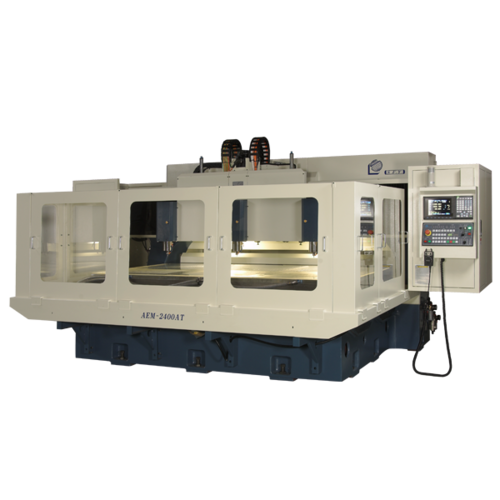

We offer models tailored to your workflow, from cost-effective non-ATC models to automated AT versions with Auto Tool Changers (up to 8 tools). For large-format panels, the AEM-2400 provides massive travels up to 2100 x 1400mm.
Exclusive Applications: Perfecting Panel Processing
Our Precision Panel Routing series is the trusted choice for industries requiring rapid, high-quality contouring and drilling:
- Display & Touch Panel Manufacturing: High-precision routing of acrylics, polycarbonates, and specialized glass used in LCD monitors, smart devices, and automotive dashboards.
- Composite & Architectural Panels: Efficiently contouring and drilling Aluminum Composite Panels (ACP), fiberglass (FR4), and carbon fiber sheets without edge delamination.
- PCB & Electronic Components: High-speed, burr-free depaneling and routing of printed circuit boards, jigs, and insulating materials for the semiconductor industry.
Frequently Asked Questions on Panel Routing CNC
What is the main difference between the AEM-HA and AEM-AT series?
The AEM-HA series utilizes manual tool changes with ER20 collets and no ATC, making it an extremely cost-effective choice for single-tool mass production runs. The AEM-AT series features Automatic Tool Changers (ATC) and multiple tooling options available(robust ISO25 tapers), perfect for complex panels requiring multiple routing, milling, and drilling steps in one setup.
Can this machine handle extremely large composite sheets?
Yes. For oversized applications, the AEM-2400 series provides extended working envelopes, with travel capabilities reaching up to 2100 x 1400mm (or 2100 x 1320mm). This allows for the continuous processing of large architectural panels, signage, or industrial composite boards.
Why choose a 6-spindle configuration?
The AEM-1200HA(6) features 6 simultaneous spindles, designed specifically for the extreme high-volume production of smaller panel components (like smartphone touch panels or PCB boards). It effectively multiplies your output by 600% within a single machining cycle, drastically lowering the manufacturing cost per part.
