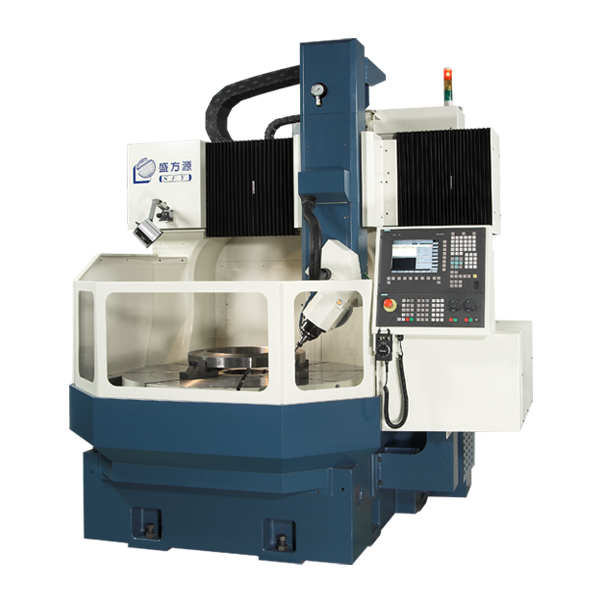

| MODEL | 4AX-980 | 4AX-1300 | 4AX-1500 | 4AX-1800 | 4AX-2500 |
|---|---|---|---|---|---|
| CONTROLLER | SIEMENS 840D | ||||
| X、Z AXIS TRAVEL | 450 x 300mm | 530 x 300mm | 630 x 550mm | 780 x 550mm | 1130 x 550mm |
| B AXIS TRAVEL | ± 93° | ± 93° | ± 93° | ± 93° | ± 93° |
| C AXIS TRAVEL | ± 360° | ± 360° | ± 360° | ± 360° | ± 360° |
| SPINDLE SPEED | 30,000RPM | 30,000RPM | 30,000RPM | 30,000RPM | 30,000RPM |
| SPINDLE MOTOR | 3KW/ 4HP | 3KW/ 4HP | 3KW/ 4HP | 3KW/ 4HP | 3KW/ 4HP |
| SPINDLE TAPER | HSK-E40 | HSK-E40 | HSK-E40 | HSK-E40 | HSK-E40 |
| ATC NO. | 16 | 24 | 24 | 24 | 24 |
