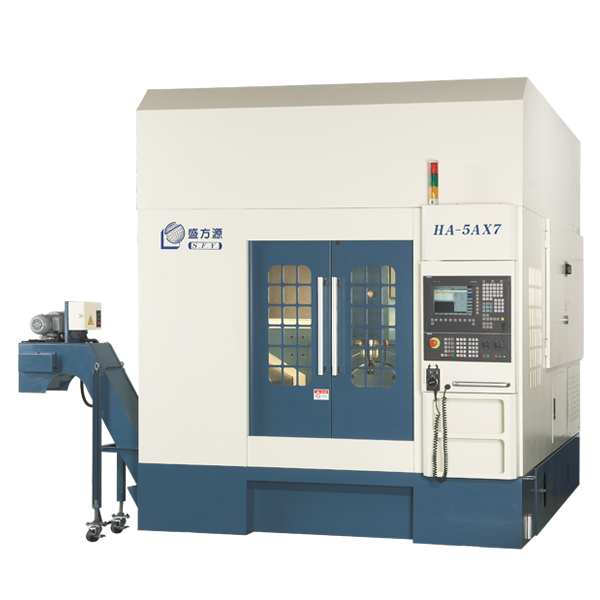

| MODEL | HA-5AX7A | HA-5AX7B |
| CONTROLLER | SIEMENS 、HEIDENHAIN 3D AXIS SIMULTANEOUS CONTROLLER | |
| X、Y 、Z AXIS TRAVEL | 600 x 400 x 400mm | 800 x 550 x 600mm |
| B AXIS TRAVEL | ± 110° | ± 110° |
| C AXIS TRAVEL | ± 360° | ± 360° |
| TABLE DIMENSION | Φ520x420mm | Φ520x420mm |
| SPINDLE SPEED | 30,000RPM | 36,000RPM |
| SPINDLE MOTOR | 10 KW/ 13.3 HP | 20 KW/ 26.7 HP |
| SPINDLE TAPER | HSK-E40 | HSK-E50 |
| ATC NO. | 16 |
16 |
