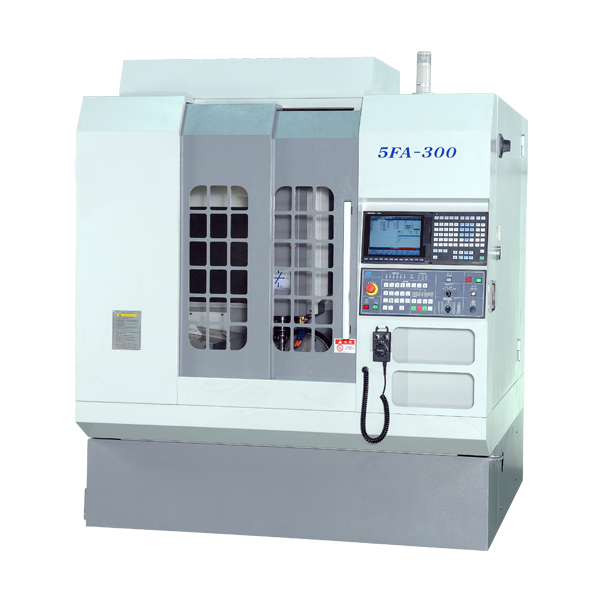

| MODEL | 5FA-200 | 5FA-300 | |||||
|---|---|---|---|---|---|---|---|
| CONTROLLER |
MITSUBISHI、SIEMENS |
||||||
| X、Y AXIS TRAVEL | 200 x 140mm | 300 x200mm | |||||
| Z AXIS TRAVEL | 140mm | 300mm | |||||
| B AXIS TRAVEL | ± 110° | ± 110° | |||||
| C AXIS TRAVEL | ± 360° | ± 360° | |||||
| SPINDLE SPEED | 30,000RPM | 30,000RPM | |||||
| SPINDLE TAPER | ISO#25 | HSK-E40 | |||||
| SPINDLE MOTOR | 3KW/ 4HP | 6.4KW/ 8.5HP | |||||
| ATC NO. | 8 | 16 | |||||
