Engineered for Aerospace Frames and EV Chassis: Ultra-High-Speed Contour Cutting for Massive Material Removal.
HSC Double Column CNC: Technology & Application Snapshot
- Core Technology: Integrated Heavy-Duty Gantry (Double Column) Architecture with High-Torque Spindle.
- Primary Advantage: Breakthrough Material Removal Rates (MRR) and superior high-volume chip evacuation.
- Key Applications: Aerospace structural frames, EV battery trays, and large automotive subframes.
- Process Focus: Top-down ultra-high-speed contour cutting for expansive panels (Contrasted with multi-face box machining).

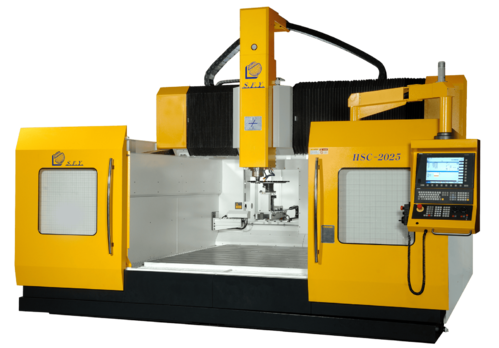

The SFY CNC HSC Gantry High-Speed Machining Center series is specifically designed for demanding manufacturing environments that require "massive material removal" on large-scale workpieces. By perfectly integrating ultra-high-speed contour cutting capabilities with ultimate double-column rigidity, this series delivers outstanding production efficiency and dimensional accuracy for broad, large-scale structural components.
Core Advantages of the Gantry Architecture: The Fusion of Rigidity and Speed
The formidable foundation of the HSC series stems from its integrated gantry structure featuring heavy-duty reinforcing ribs, purpose-built to absorb the immense stresses generated during high-speed cutting:
Breakthrough Material Removal Rate (MRR)
Equipped with a high-torque, high-speed spindle, the machine can rapidly execute heavy roughing and precision finishing of large volumes of material, drastically reducing the production cycle of expansive parts.
Unparalleled Structural Stability
The crossbeam and dual columns feature a one-piece cast design to maximize structural rigidity. This effectively dampens vibration and tool chatter during continuous high-speed cutting, significantly extending tool life.
Optimized Chip Evacuation Management
High-speed volume milling generates massive amounts of chips. Our open double-column structure facilitates rapid chip removal and smooth coolant circulation, preventing heat accumulation and workpiece thermal distortion.
Exclusive Applications: Driving Mass Production of Large Parts
The robust and rapid characteristics of the HSC series make it the absolute top choice for highly demanding industries dealing with large structural geometries:
- Large Aerospace Structural Frames: Specializing in the high-speed milling of aerospace aluminum alloys. The perfect solution for machining wing ribs, fuselage bulkheads, and large structural nodes requiring massive material removal.
- Automotive Chassis and Electric Vehicle (EV) Parts: Highly efficient in processing large-sized automotive components, including aluminum EV battery trays, subframes, and broad chassis structural parts.
- Large Fixture Plates and Precision Base Plates: Purpose-built for machining large jig/fixture bases and large-scale aluminum/steel plates, ensuring absolute flatness and dimensional accuracy across a vast machining envelope.
Frequently Asked Questions on Gantry High-Speed Machining
What is the primary difference between this HSC Machine and your "5-Face Machining Center"?
Our 5-Face Machining Center (3+2 axis) focuses on enabling bulky, box-like parts to undergo "drilling and milling on multiple faces in a single setup." In contrast, the HSC Double Column Machine specializes in top-down "ultra-high-speed contour cutting" and "massive material removal (high MRR)." It is the ultimate tool designed specifically for handling expansive flat or curved panels (such as aerospace frames and EV battery trays).
Is this machine suitable for machining sub-micron optical molds?
No, it is not suitable. The HSC series is engineered for efficient volume material removal on large structural components. If you require sub-micron ultimate tolerances, optical-grade surface roughness, and are working with small to medium-sized parts, we strongly recommend choosing our Ultra-High Precision High-Speed Machining Center series, which is specifically designed to eliminate micro-vibrations.
Why does the introduction of this machine specifically emphasize "chip evacuation capability"?
Because this machine specializes in high-speed material removal (especially for large aerospace aluminum alloy parts), it generates an astonishing volume of chips in a short period. If they cannot be evacuated instantly, the recutting of chips and heat accumulation will severely damage the tool and lead to thermal deformation of the workpiece. Our optimized open gantry structure ensures continuous and smooth operation under extreme high-MRR conditions.
