Conquer Extreme Proportions! The Ultimate 4-Axis Heavy-Duty Milling Solution for Large-Scale Profiles, Extrusions, and Cylindrical Shafts.
Heavy-Duty Structural Milling CNC: Technology & Application Snapshot
- Core Technology: Extended 1700mm X-axis travel integrated with a ±360° continuous rotary A-axis.
- Primary Advantage: Delivers extreme cutting rigidity for oversized, long workpieces that standard machining centers cannot accommodate.
- Key Applications: Aerospace stringers, automotive chassis extrusions, industrial rollers, and large architectural structural parts.
- Process Focus: Heavy-duty material removal, deep slotting, and multi-sided profiling for workpieces up to 1750mm in length.

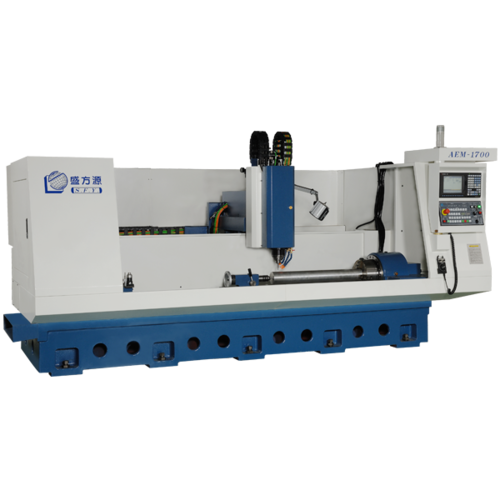

Manufacturing oversized structural components requires a machine that does not compromise on either workspace or rigidity. The SFY Heavy-Duty CNC Gantry Milling Machine (AEM-1700) is specifically engineered to process exceptionally long and heavy parts. By combining a massive 1750mm distance between centers with a heavy-duty BT30 spindle, this machine empowers manufacturers to execute deep, aggressive cuts on large structural aluminum, steel profiles, and heavy cylindrical components with absolute stability.
Core Advantages: Engineered for Massive Workpieces
When machining long and bulky parts, structural integrity is everything. The AEM-1700 delivers unmatched capability through its specialized configuration:
Extended Working Envelope
Boasting an impressive 1700mm X-axis travel and a 1750mm distance between centers, this machine easily accommodates long aluminum extrusions, structural beams, and oversized shafts that would otherwise require multi-stage setups.
Rigid BT30 Spindle Power
Equipped with a highly robust BT30 spindle taper and driven by a powerful 6.4 KW motor at 24,000 RPM. This configuration provides the superior radial stiffness necessary for heavy material removal without generating tool chatter.
4-Axis Rotary Profiling
Featuring an integrated A-axis with ±360° rotation and a maximum working diameter of 300mm. This enables continuous multi-sided milling and deep slotting on long cylindrical parts without the need to manually unclamp and flip the workpiece.
Exclusive Applications: Building the Backbone of Industry
The Heavy-Duty AEM-1700 is the go-to solution for industries dealing with large-scale structural integrity:
- Aerospace & Automotive: Machining long structural stringers, aluminum chassis extrusions, and heavy-duty frame components with strict linear tolerances.
- Industrial Rollers & Cylinders: Heavy-duty milling, slotting, and contouring of large steel or aluminum printing rollers and transmission shafts (up to 300mm in diameter).
- Architectural & Energy Structures: Precise processing of long structural profiles, custom heat sinks for wind turbines, and large-format architectural mounts.
Frequently Asked Questions on Heavy-Duty Structural CNC
Why does this machine use a BT30 spindle taper instead of ISO20/25?
When processing large structural parts, the cutting forces generated are significantly higher. The BT30 taper provides a larger contact surface area and greater clamping force compared to ISO20 or ISO25. Combined with the 6.4 KW motor, this ensures maximum radial stiffness, preventing vibration and tool deflection during heavy-duty milling.
How does the A-axis benefit the machining of long structural extrusions?
Long aluminum extrusions often require holes or slots on multiple faces. Without an A-axis, an operator would have to manually unclamp, rotate, and re-zero a 1.7-meter-long heavy part multiple times, risking severe alignment errors. The integrated ±360° A-axis allows the machine to automatically rotate the part to any angle, ensuring perfect multi-sided accuracy in a single setup.
What is the maximum workpiece size this machine can handle?
The AEM-1700 is designed for extreme length and substantial girth. It features a distance between centers of 1750mm and can accommodate a maximum working diameter of 300mm. This makes it exceptionally capable of handling massive cylindrical shafts, heavy rollers, and long architectural profiles.
